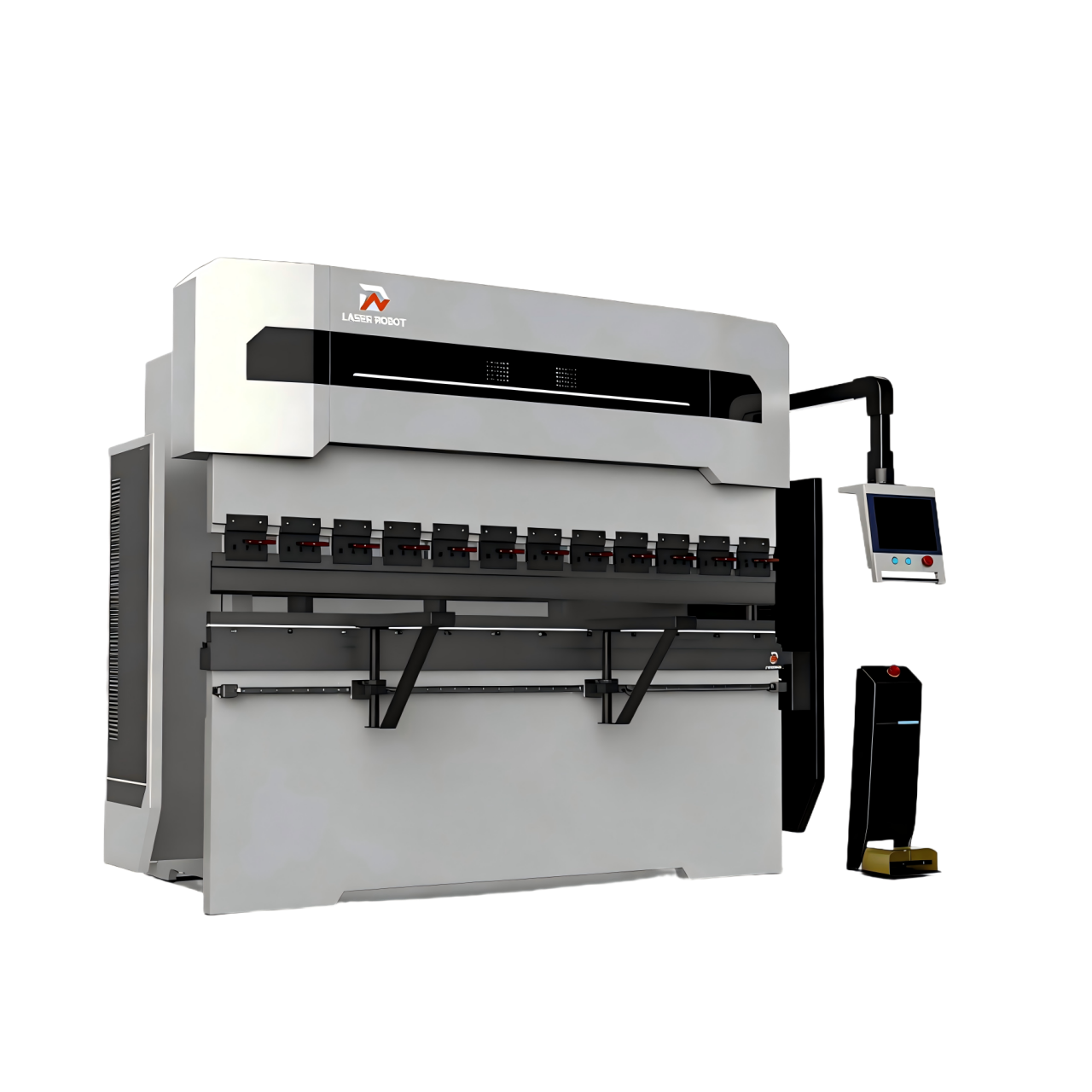

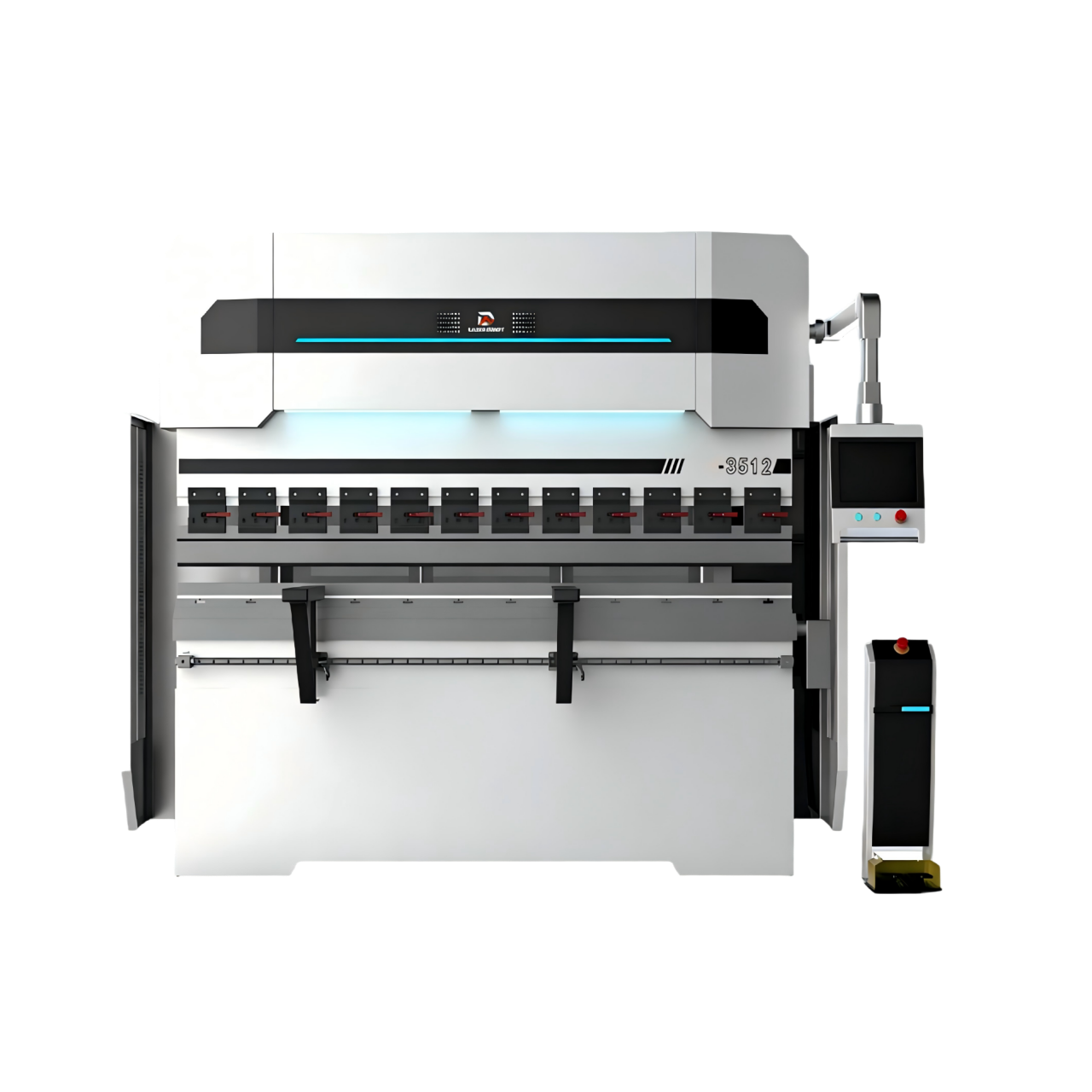

Fully Electric Servo Bending Machine features 0.01mm high precision and 30% energy saving. Servo-driven for stable performance, hydraulic-free to avoid pollution. Fast response ensures efficient production, ideal for high-end metal fabrication
-30% Energy Save | Outperform Hydraulics -Micron-Level Accuracy | Zero Bending Deviation -20% Faster Cycles | Instant Servo Response -Ultra-Low Noise | Quiet Working Environment -Fewer Spare Parts | Minimize -Maintenance Cost -Flexible Modes | Fit Multi-Spec Bending Jobs

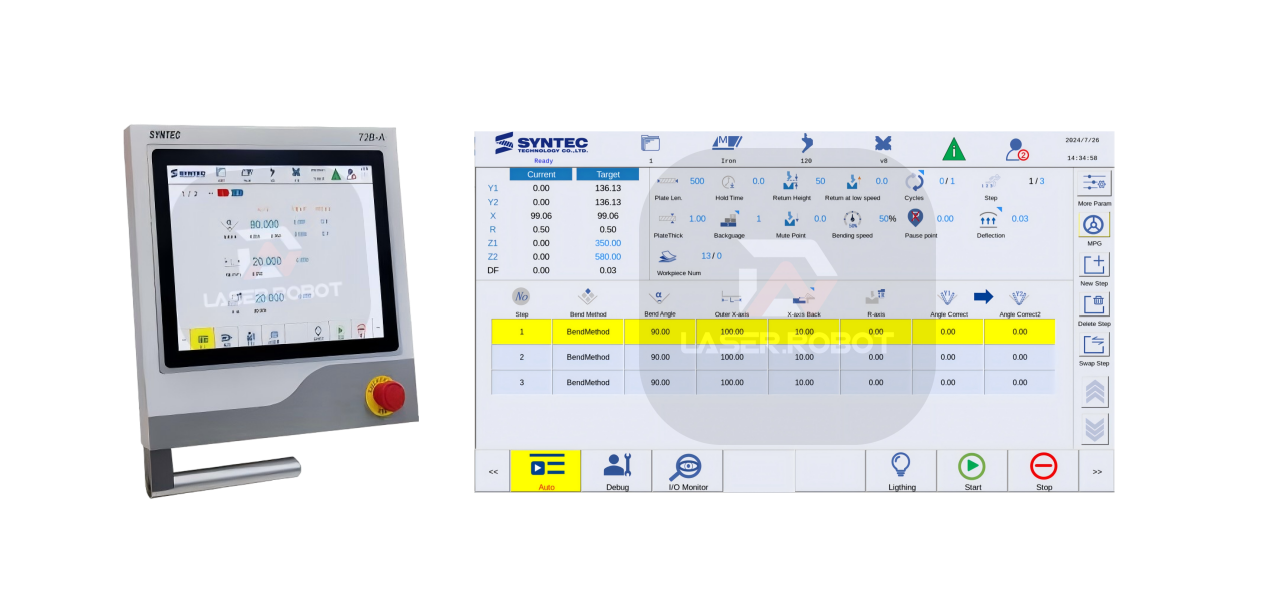

Intelligent Software
-Technical Edge: Touchscreen HMI with multi-language support; stores up to 1000+ bending programs for one-click recall. CAD file direct import streamlines programming. -User Benefit: Reduces setup time by 50%; no specialized training required for operators. -Key Phrase: "Smart HMI: Program, store, repeat—bending simplified."

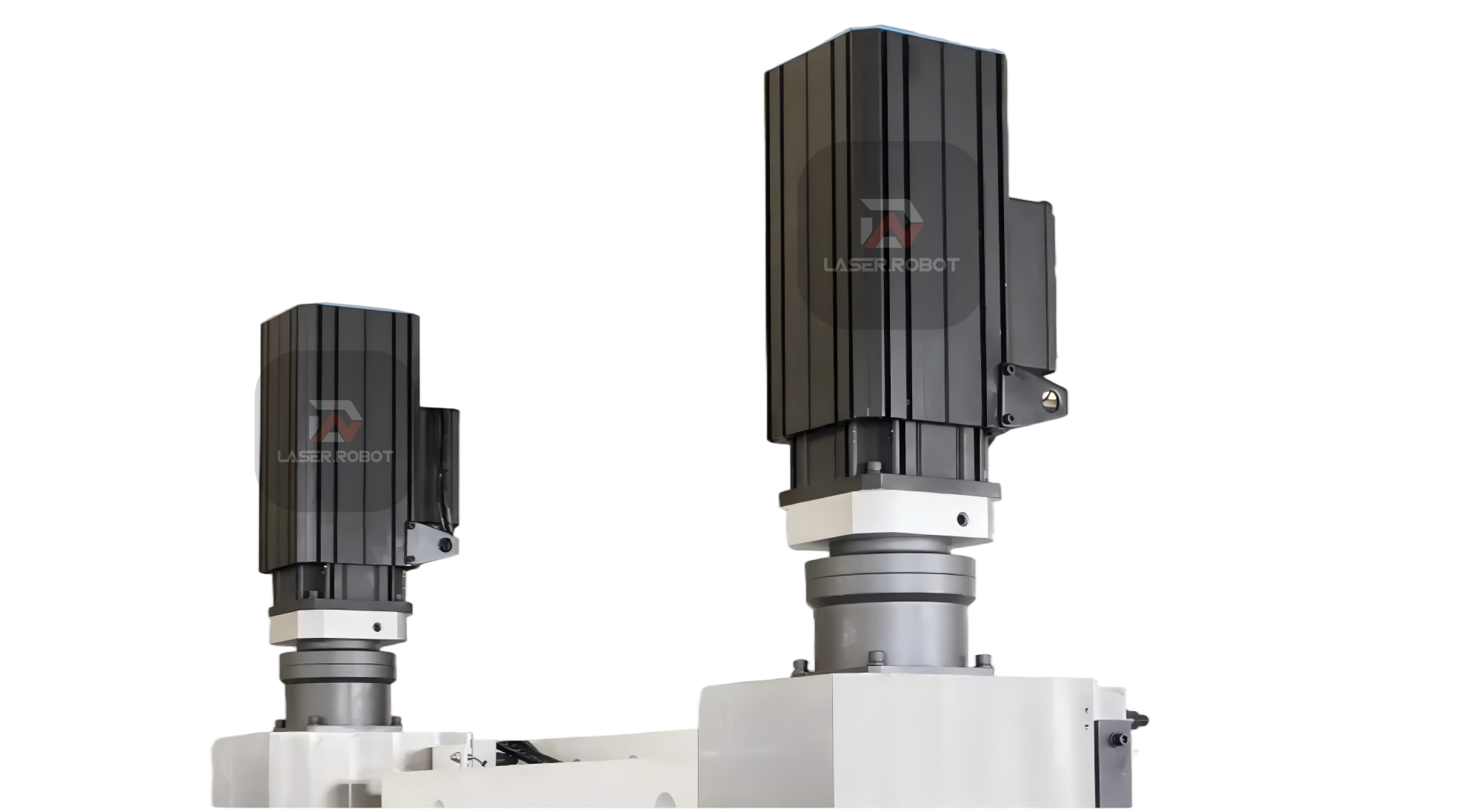

Servo Motor
-High-precision servo motor drive for fast response and high bending efficiency — over -50% higher efficiency achieved. Servo motor + ball screw drive for reliable transmission and superior bending precision. -Consistent high precision during long-term operation; no hydraulic oil needed, zero leakage risk, and easy machine maintenance.

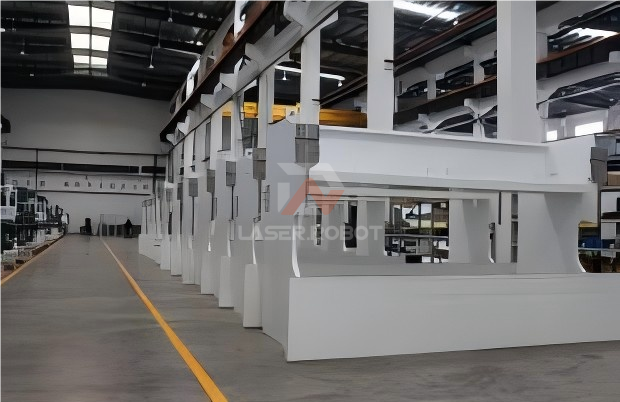

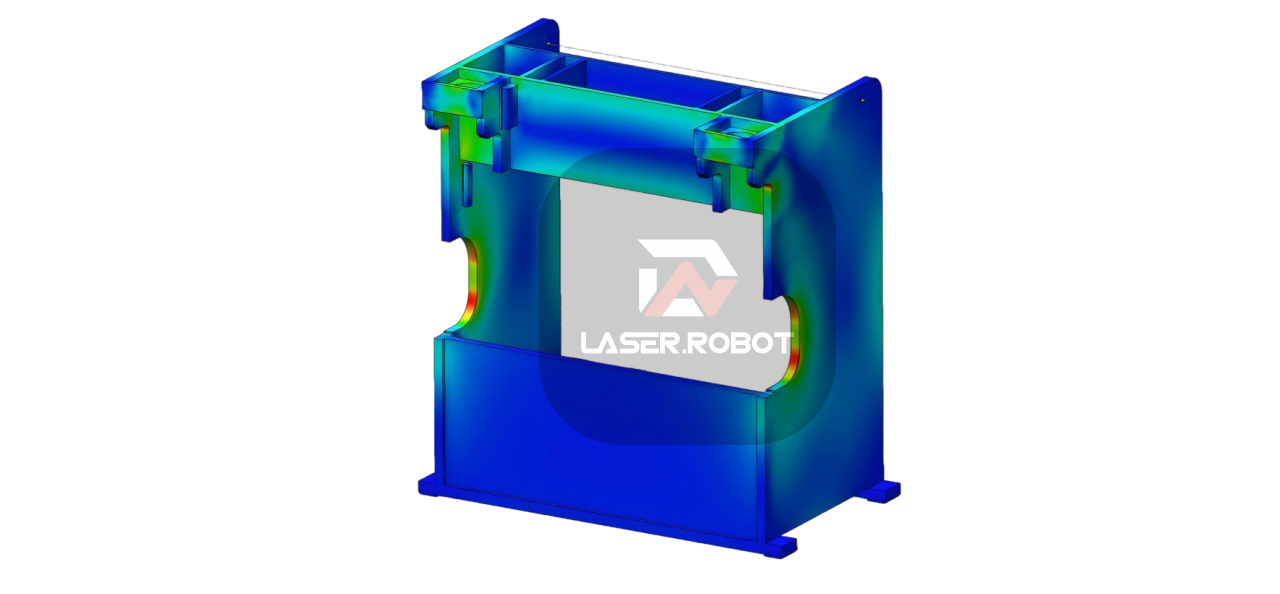

Finite element analysis is used to analyze the deformation and safety factor of key mechanical components of the machine tool to ensure the high rigidity requirements and long-term reliability of the machine tool as a whole.
Press Brake Die Advantages
-High-Precision Bending: ±0.02mm tolerance, consistent accuracy -Superior Durability: Premium hardened steel, 40% longer service life -Versatile Compatibility: Universal press brake fit, works with steel/aluminum/copper -Fast Changeover: Quick-release clamp, 30% less downtime -Low Maintenance: Anti-adhesion surface, no frequent polishing -Enhanced Safety: Anti-slip/anti-collision, full operator & equipment protection

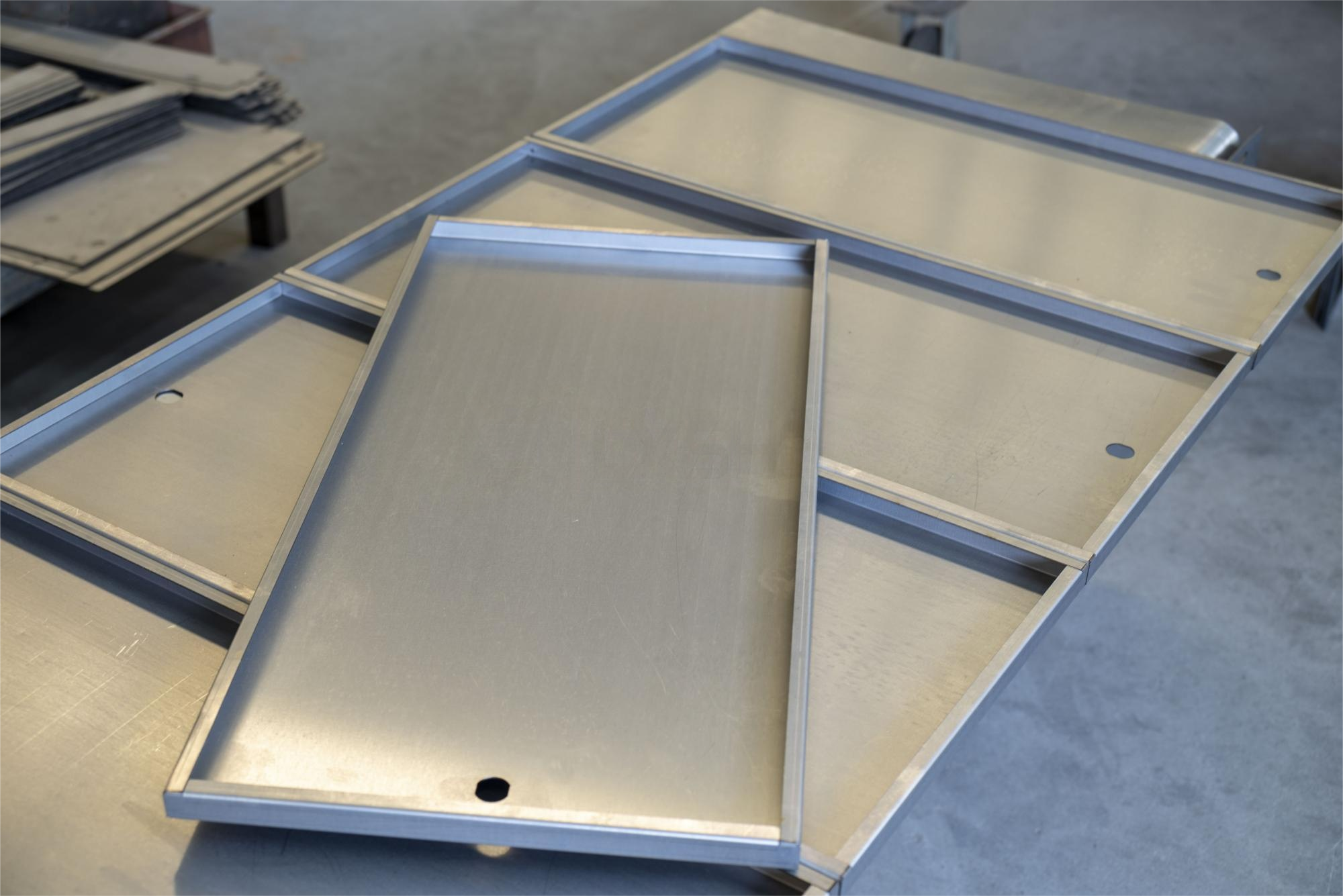

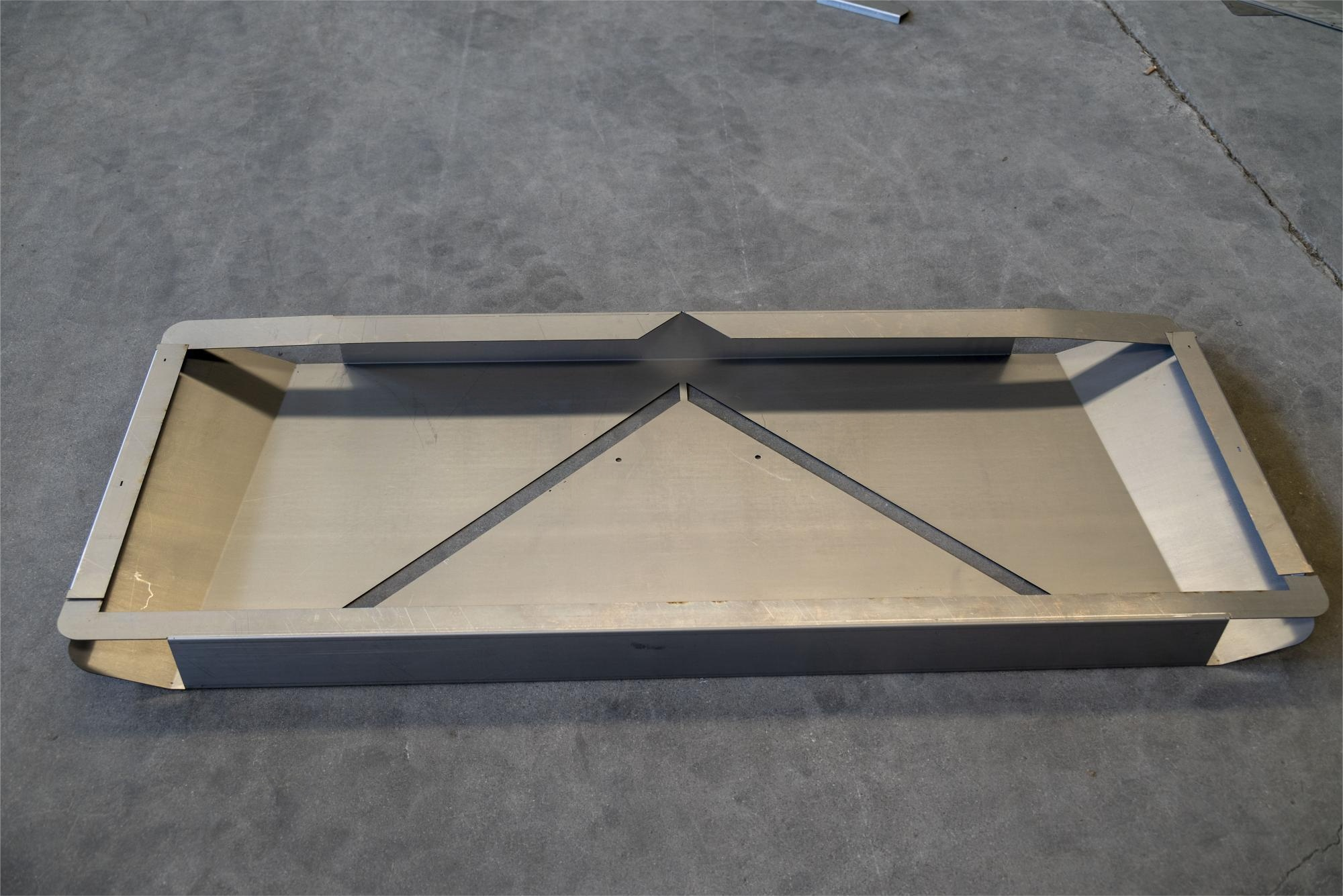

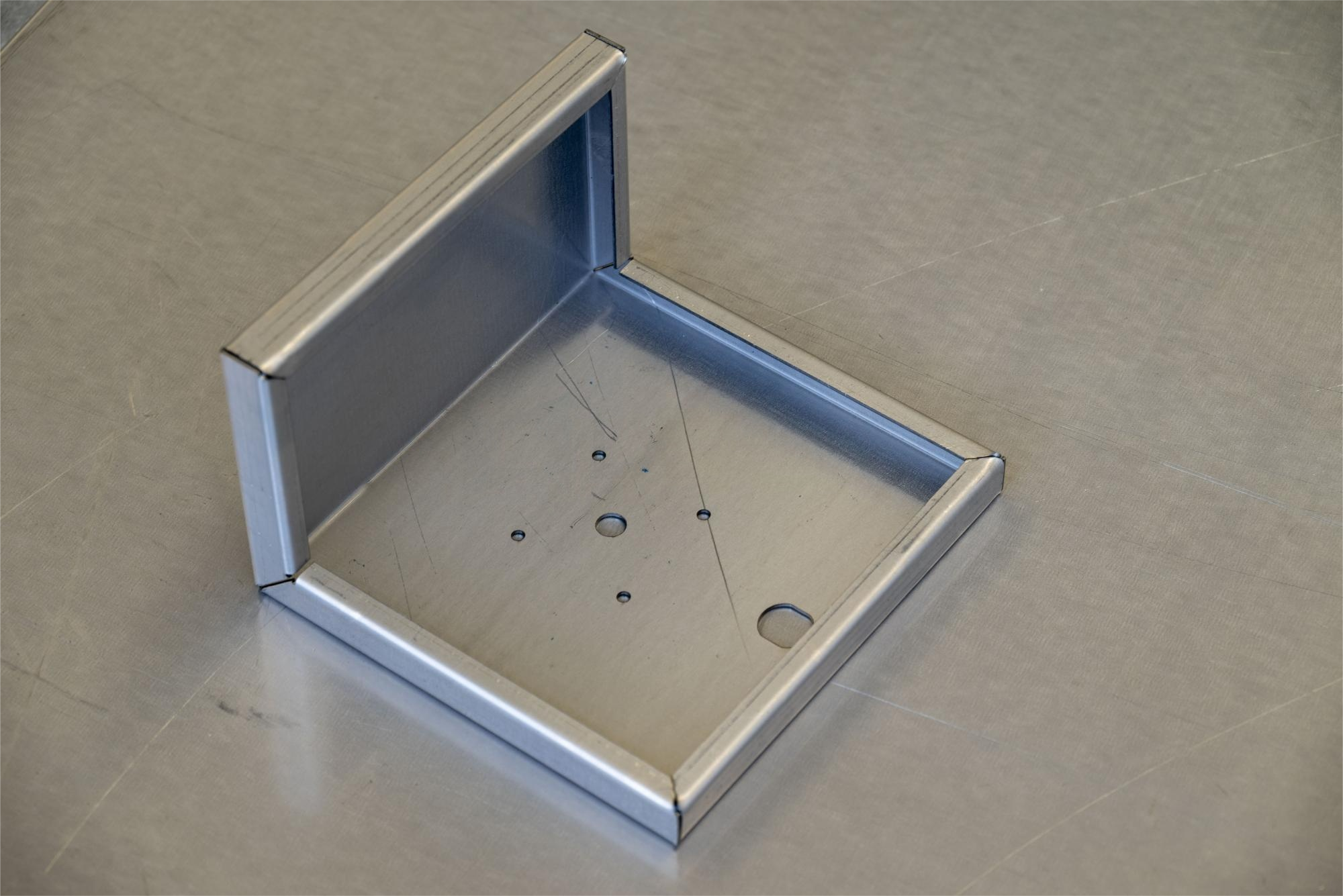

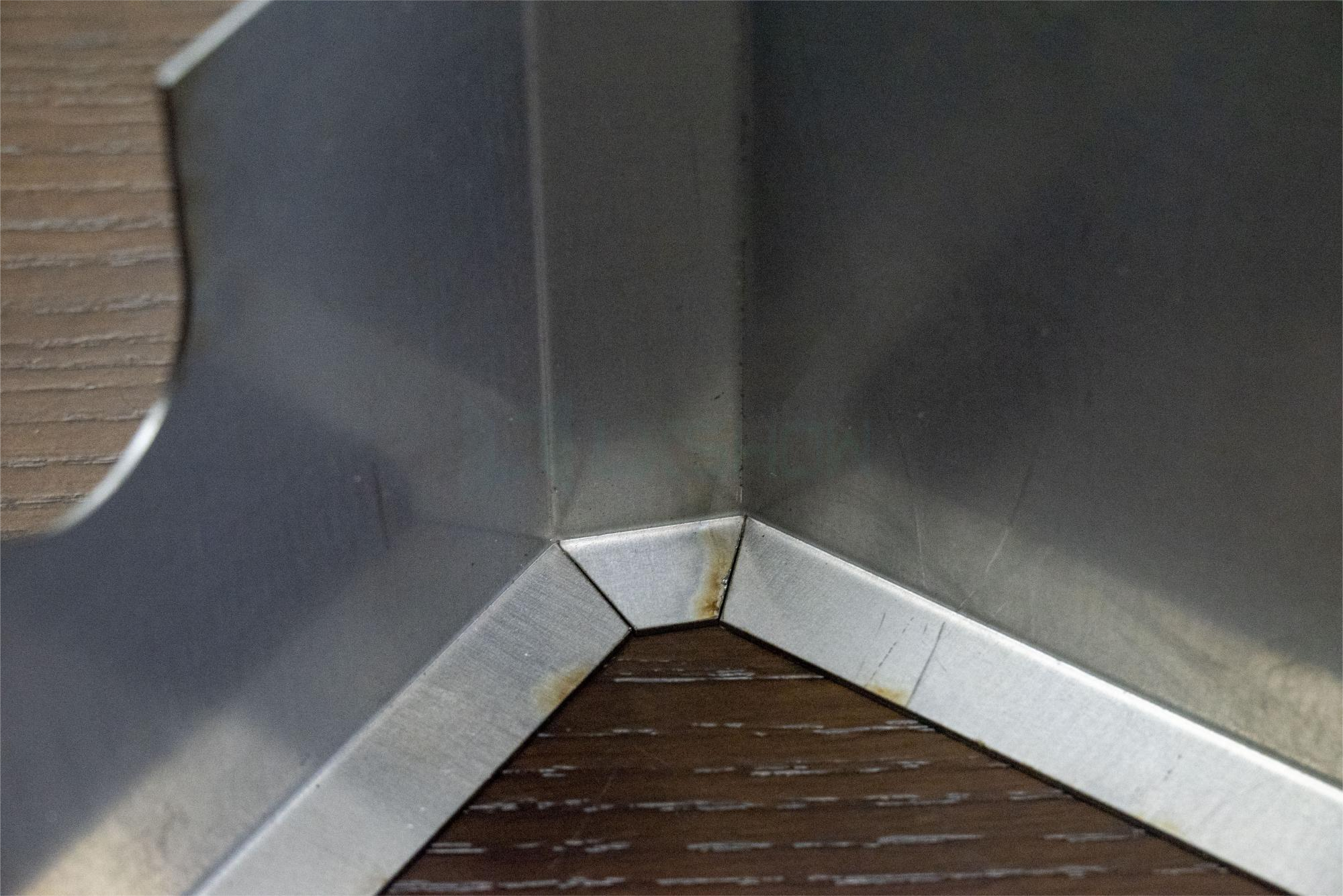

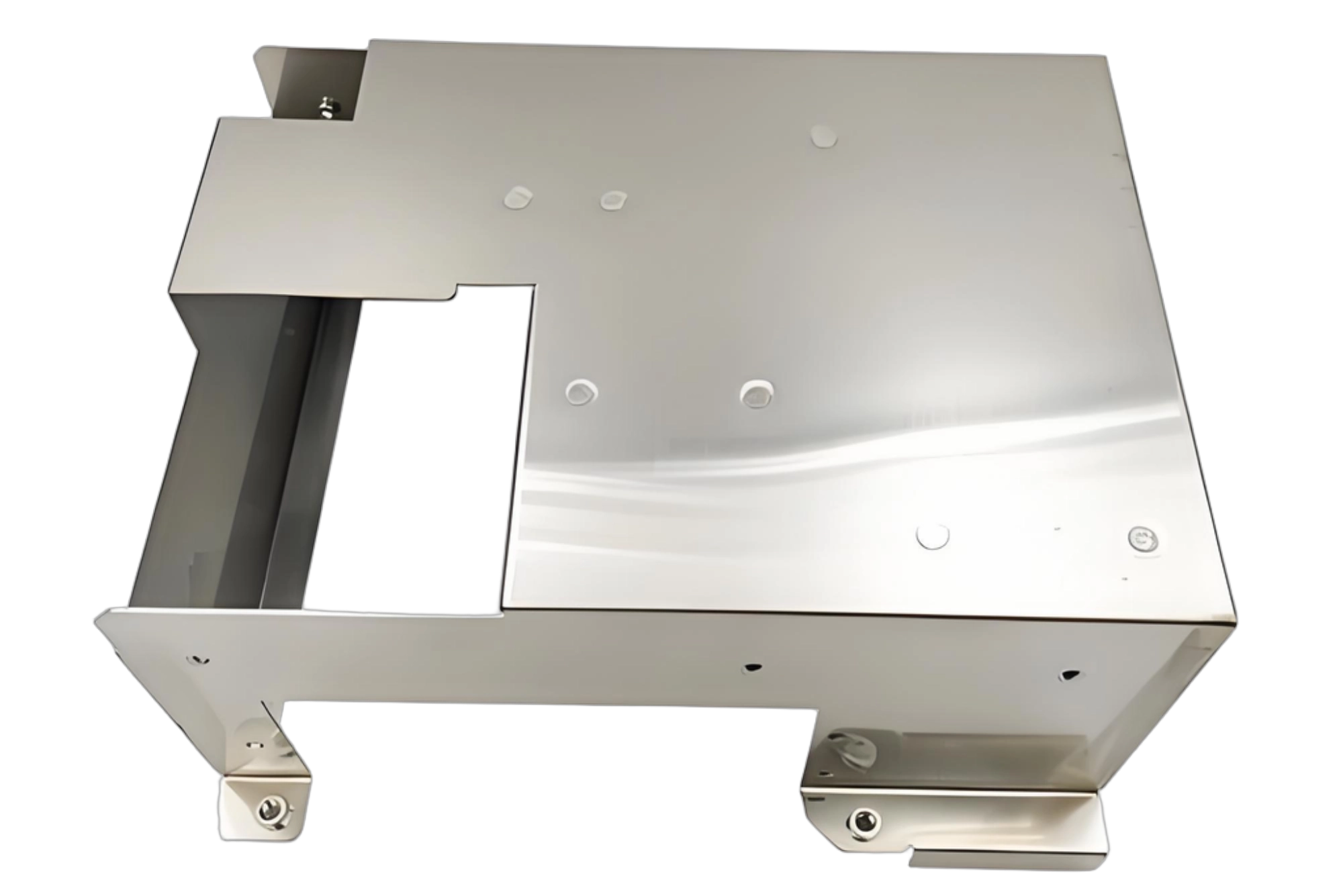

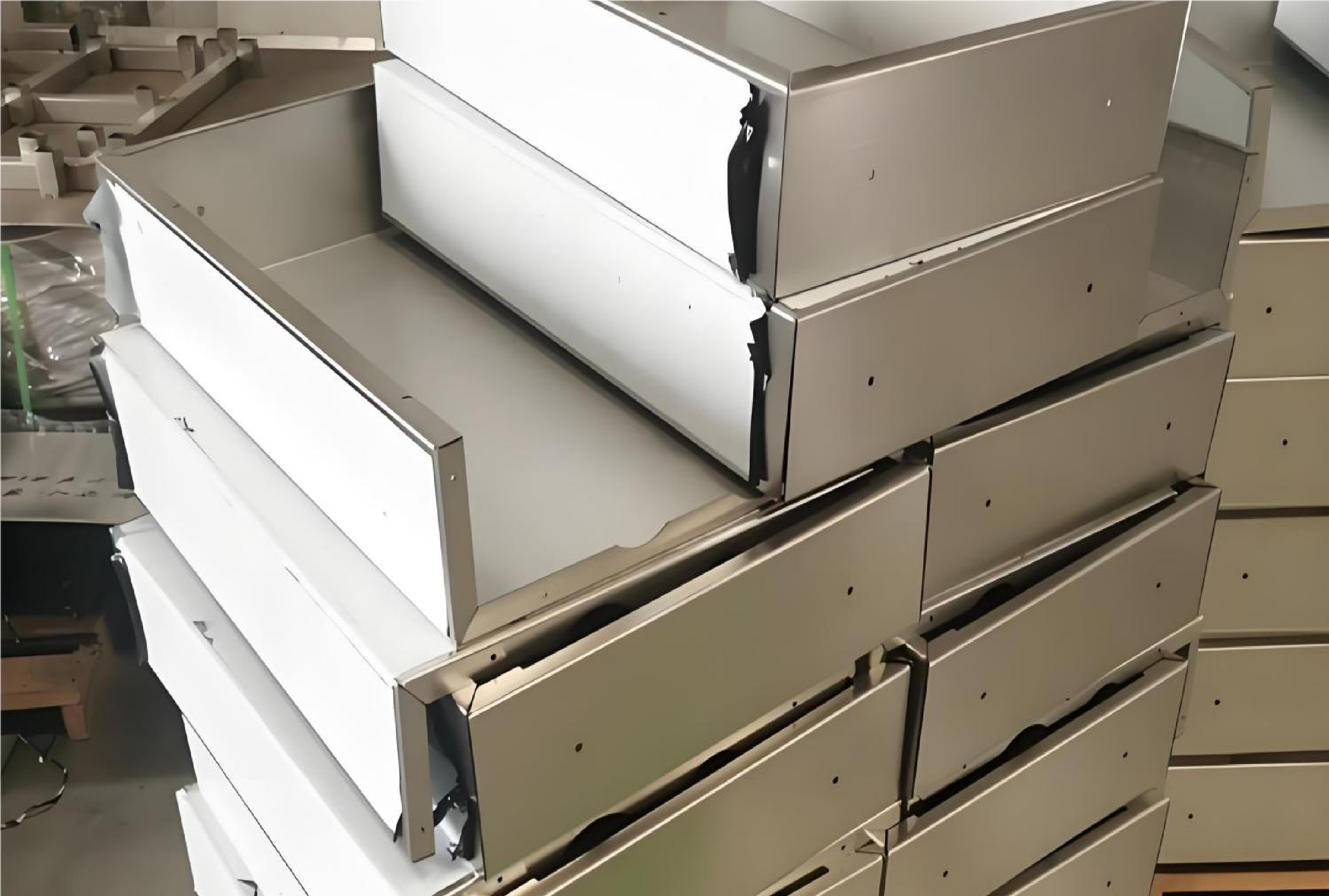

Bending Sample
PROFESSIONAL QUALITY
PROFESSIONAL QUALITY
PROFESSIONAL QUALITY
PROFESSIONAL QUALITY
PROFESSIONAL QUALITY

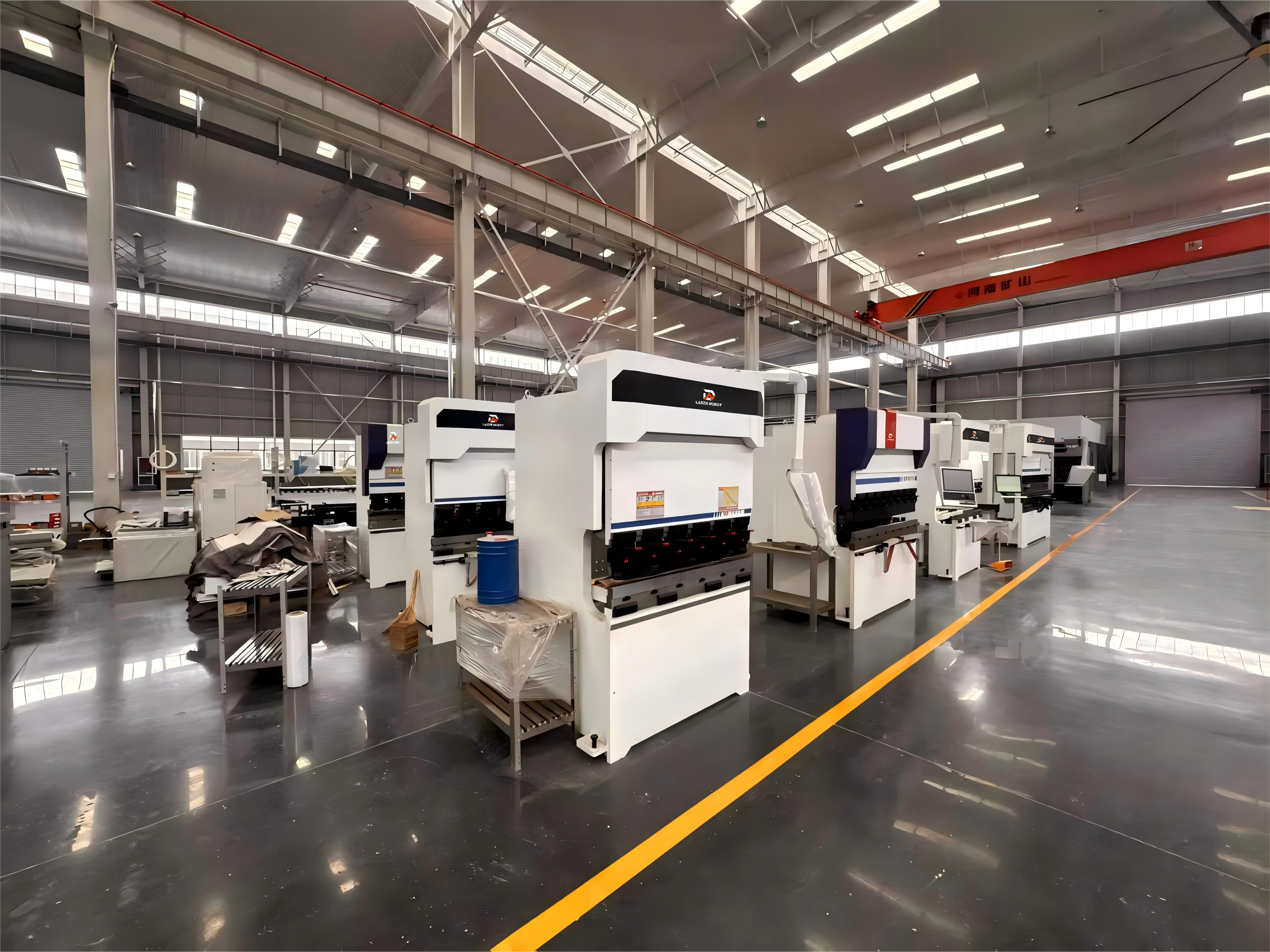

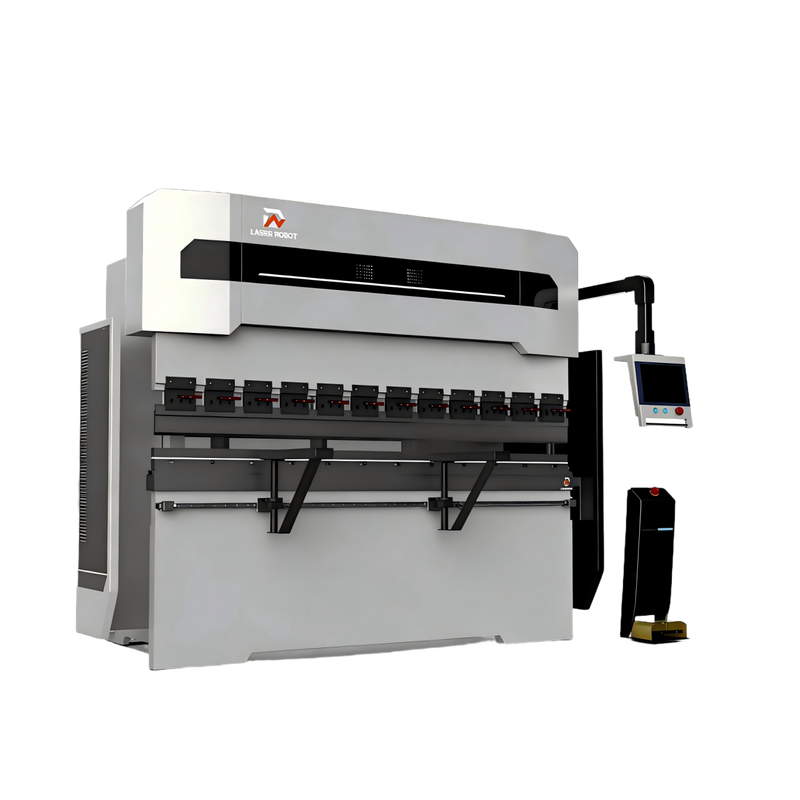

Machine Show

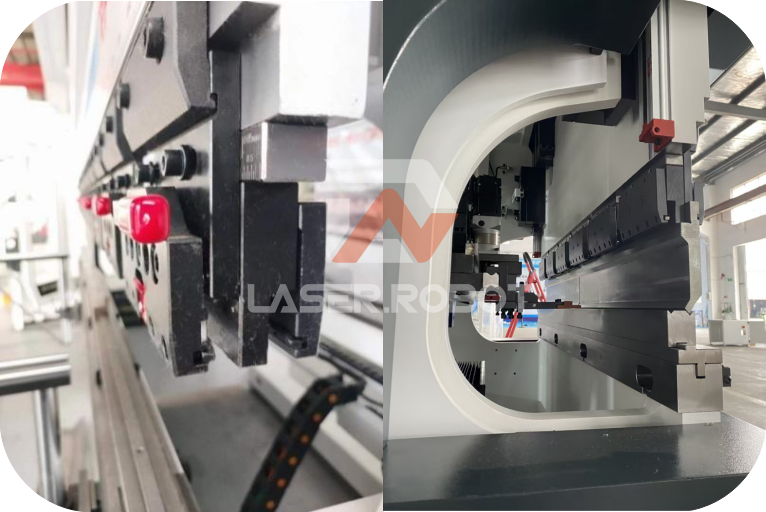

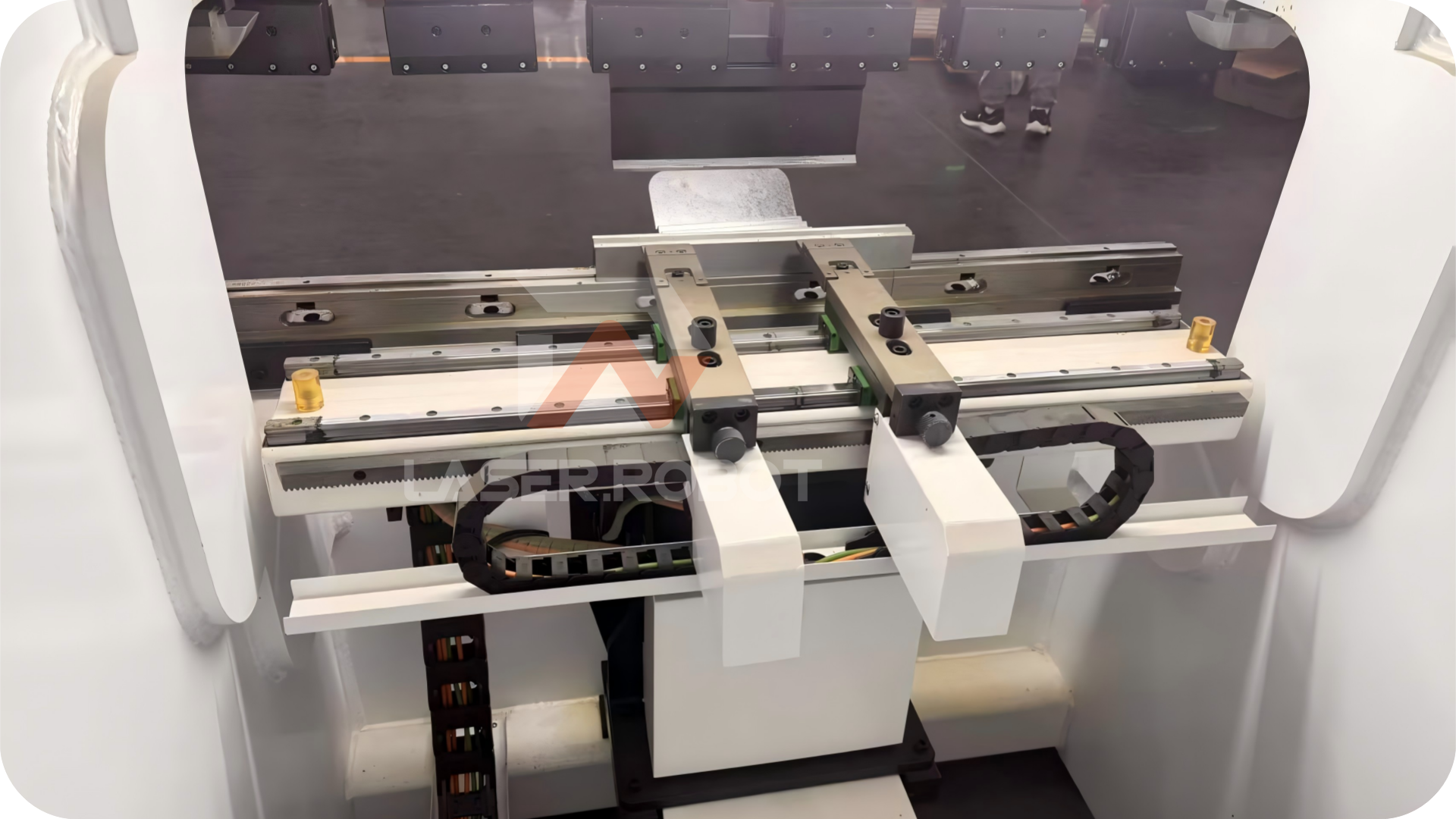

Details

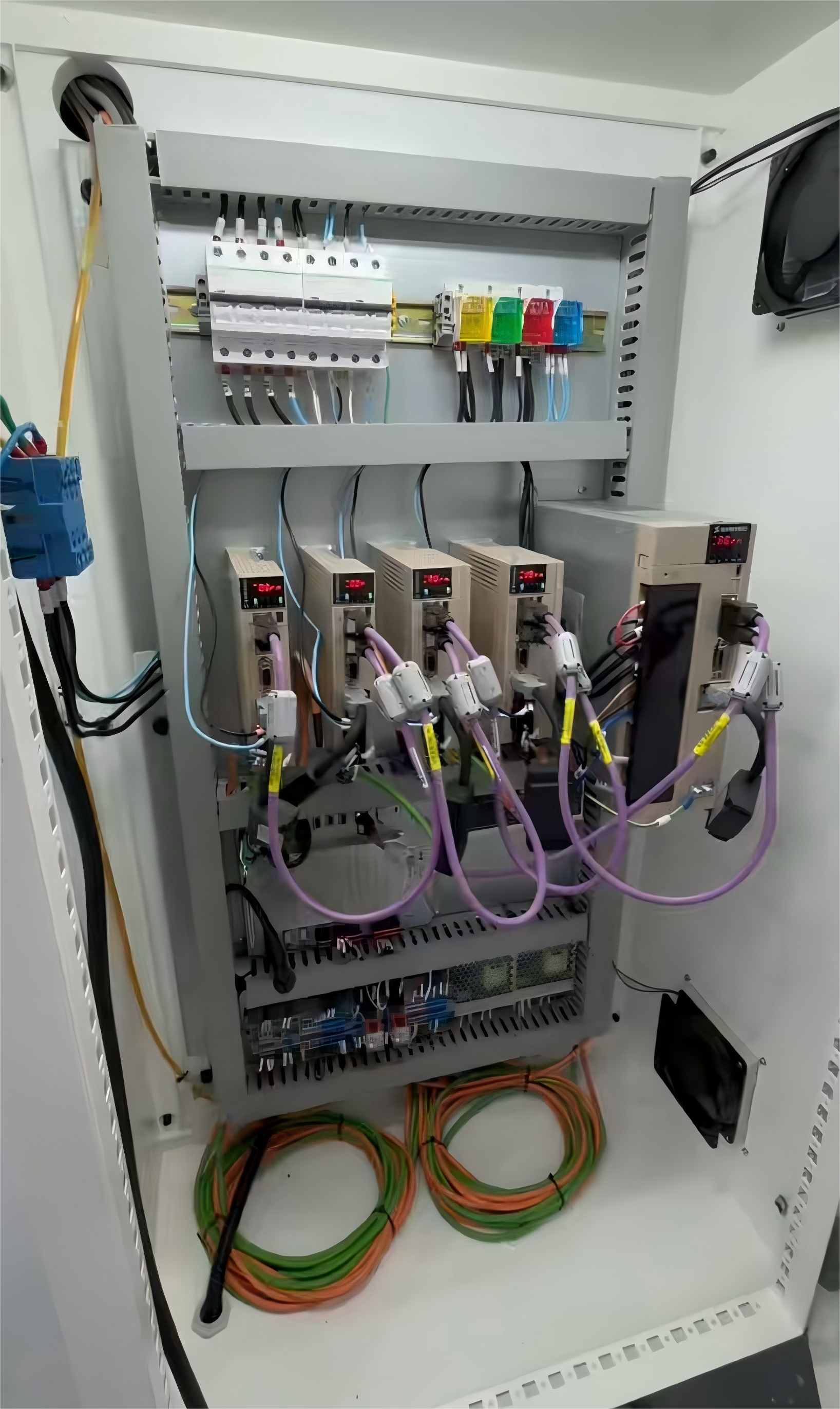

Electrical

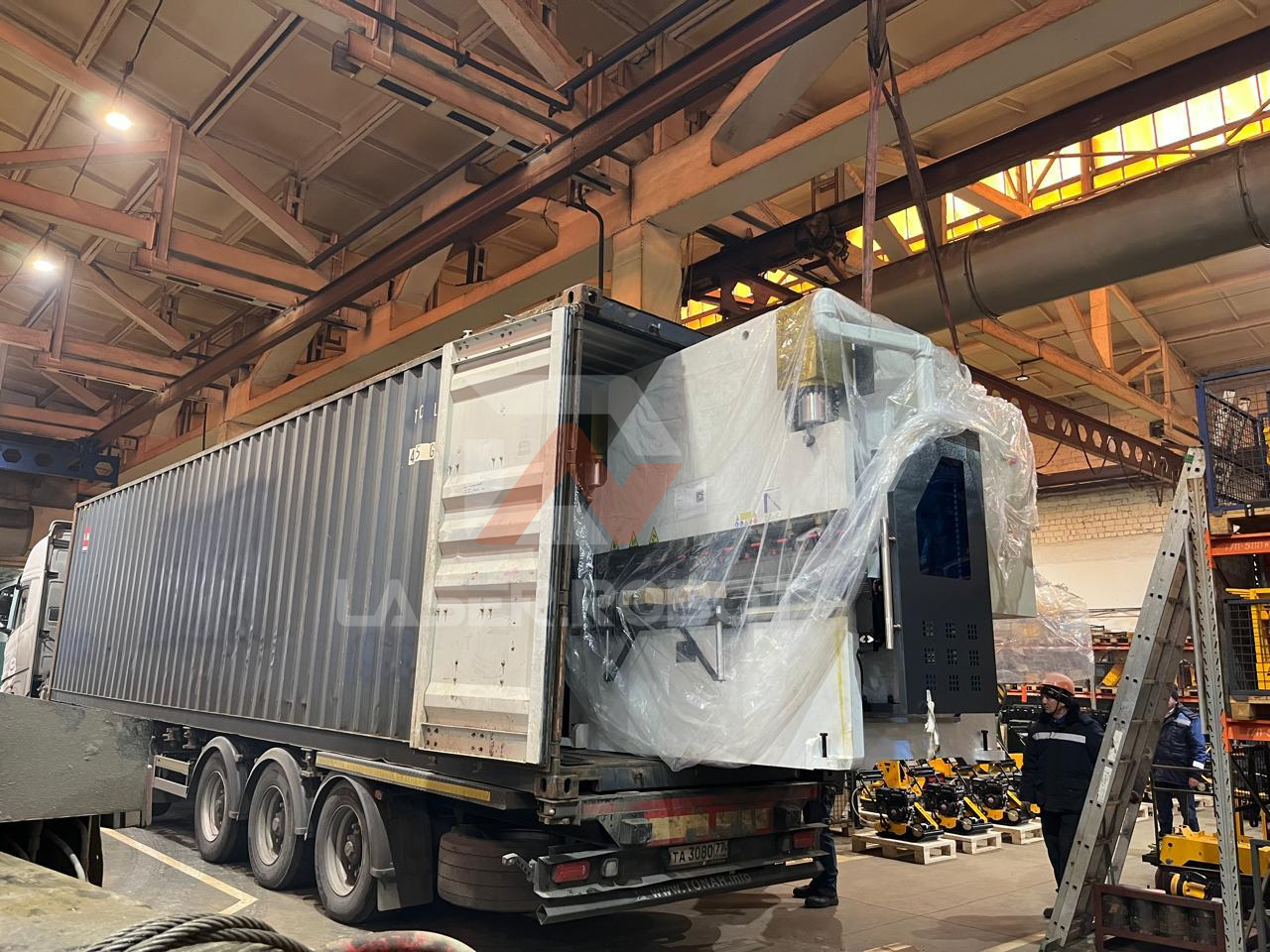

Package
Air Conditioner
Details
▶ Technical Parameter
Model
DN-EB5016
DN-EB6025
Bending force（KN）
500
600
Bending length（mm）
1650
2550
Driving mode
AC servo
AC servo
Main motor
HCFA/Inovance
HCFA/Inovance
Control axis
5
6+1
Main motor power（KW）
7.5
15
Driving screw
SHAC
SHAC
Driving screw amount
1
2
Sliding block open height（mm）
200
550
Throat depth (mm)
200
300
Worktable height（mm）
880
950
Y1/Y2 Speed（mm/s）
400
350
Rear support
R axis
Block rapid speed（mm/s）
200
150
Block working speed（mm/s）
0.2--50
0.2-50
Block return speed（mm/s）
200
300
Locating speed（mm/s）
200
300
X axis locating speed（mm/s）
500
450
Z1 axis locating speed（mm/s）
500
450
Z2 axis locating speed（mm/s）
500
450
Control system
SYNTEC 72BA 7axis -TAIWAN
Dimensions
Length（mm）
1750
3000
Width（mm）
1100
1540
Height（mm）
2100
2500
Weight（Kg）
4200
6800
Note：Y-axis - Controls slider up and down movement
X-axis - Controls rear stop forward and backward movement
R-axis - Controls up and down movement of rear stopper
Z1, Z2 axis - Control stop finger left and right movement (optional)
