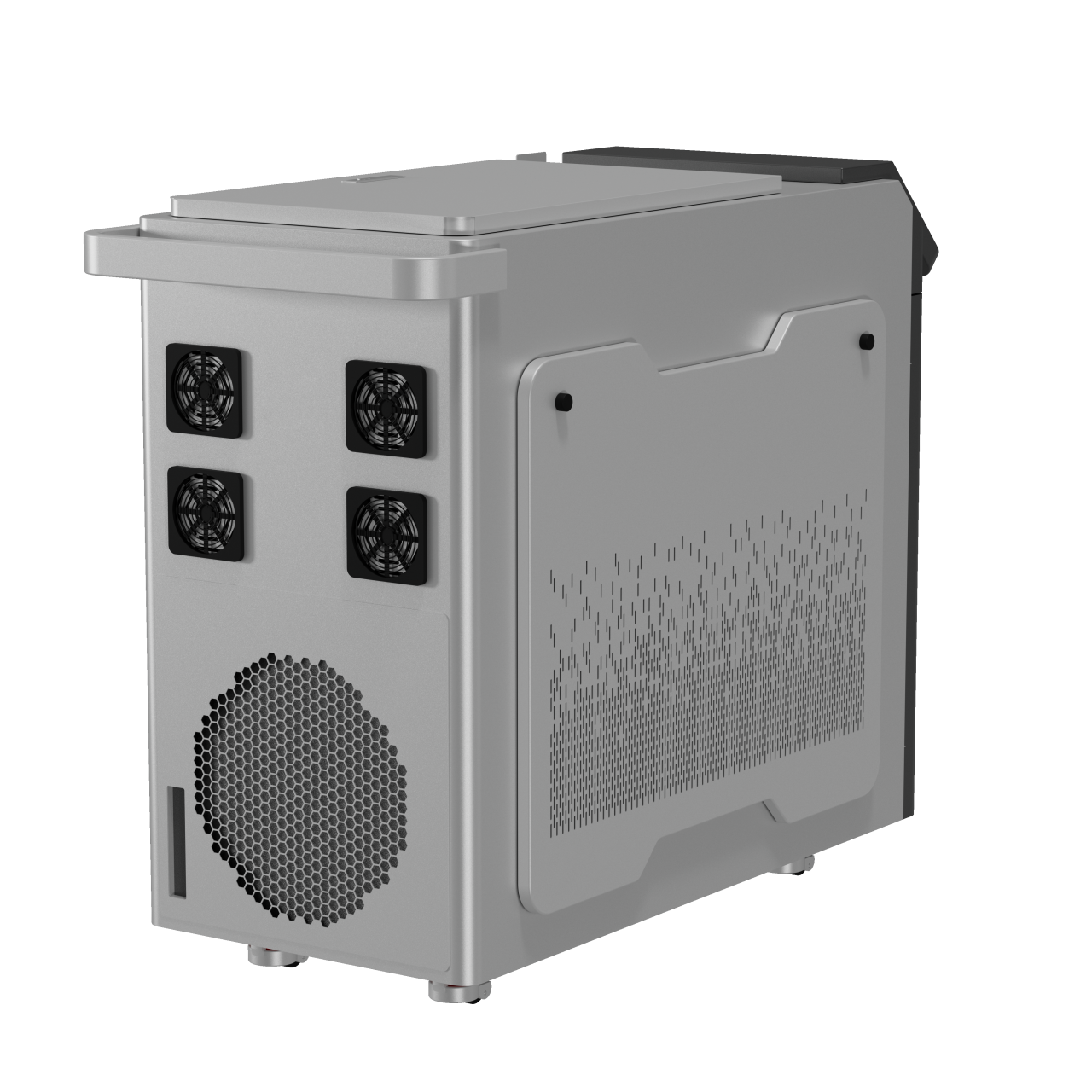

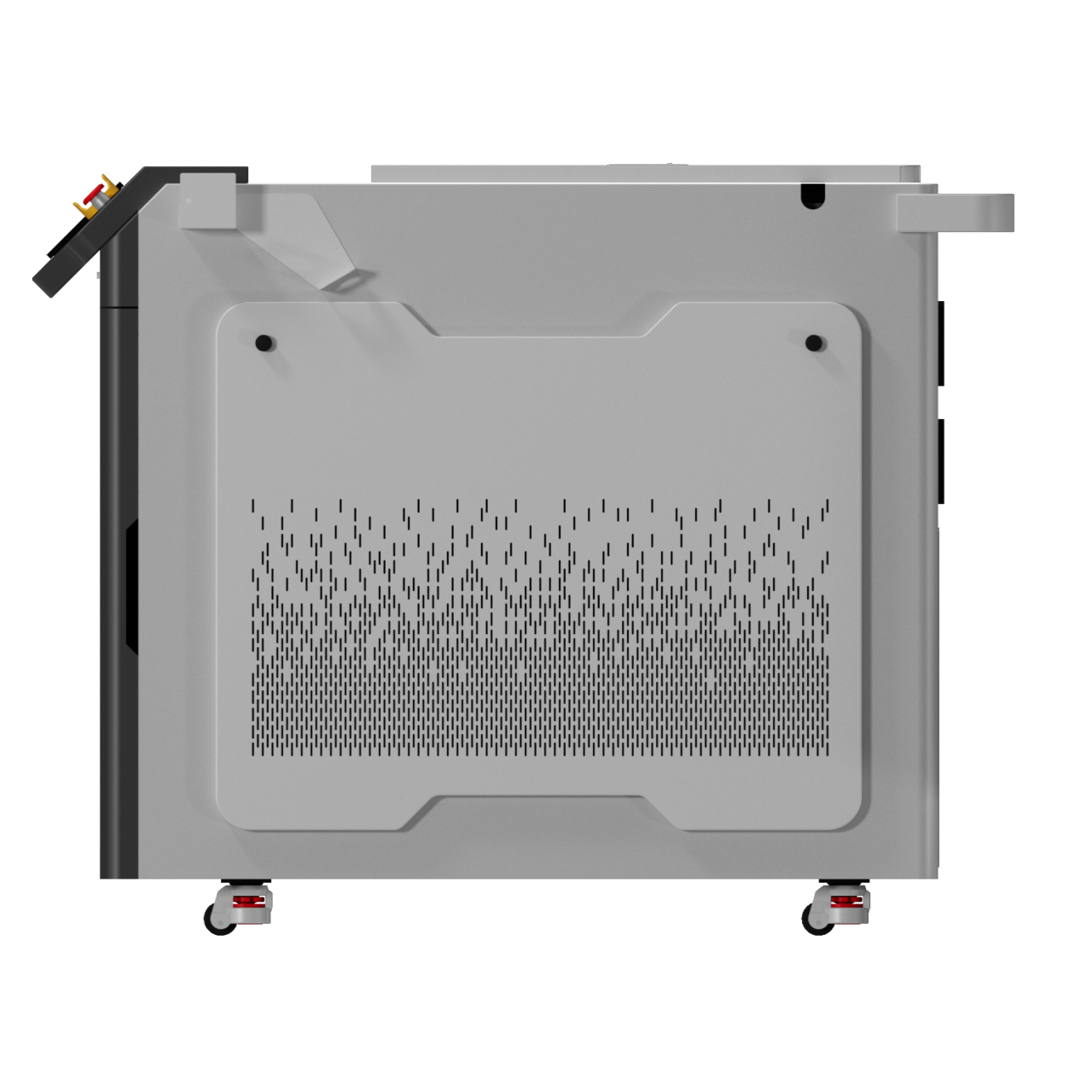

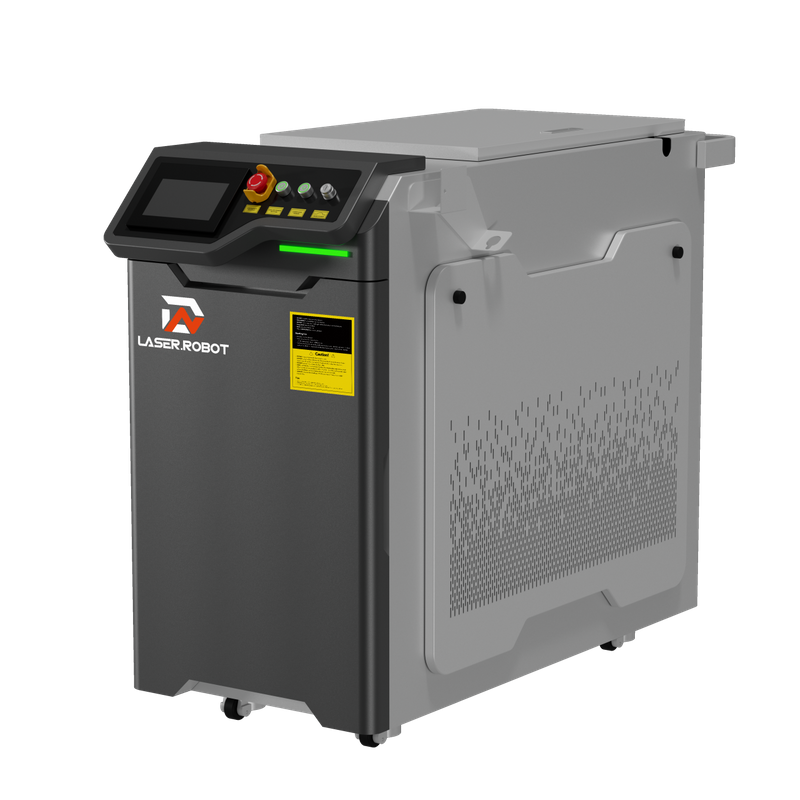

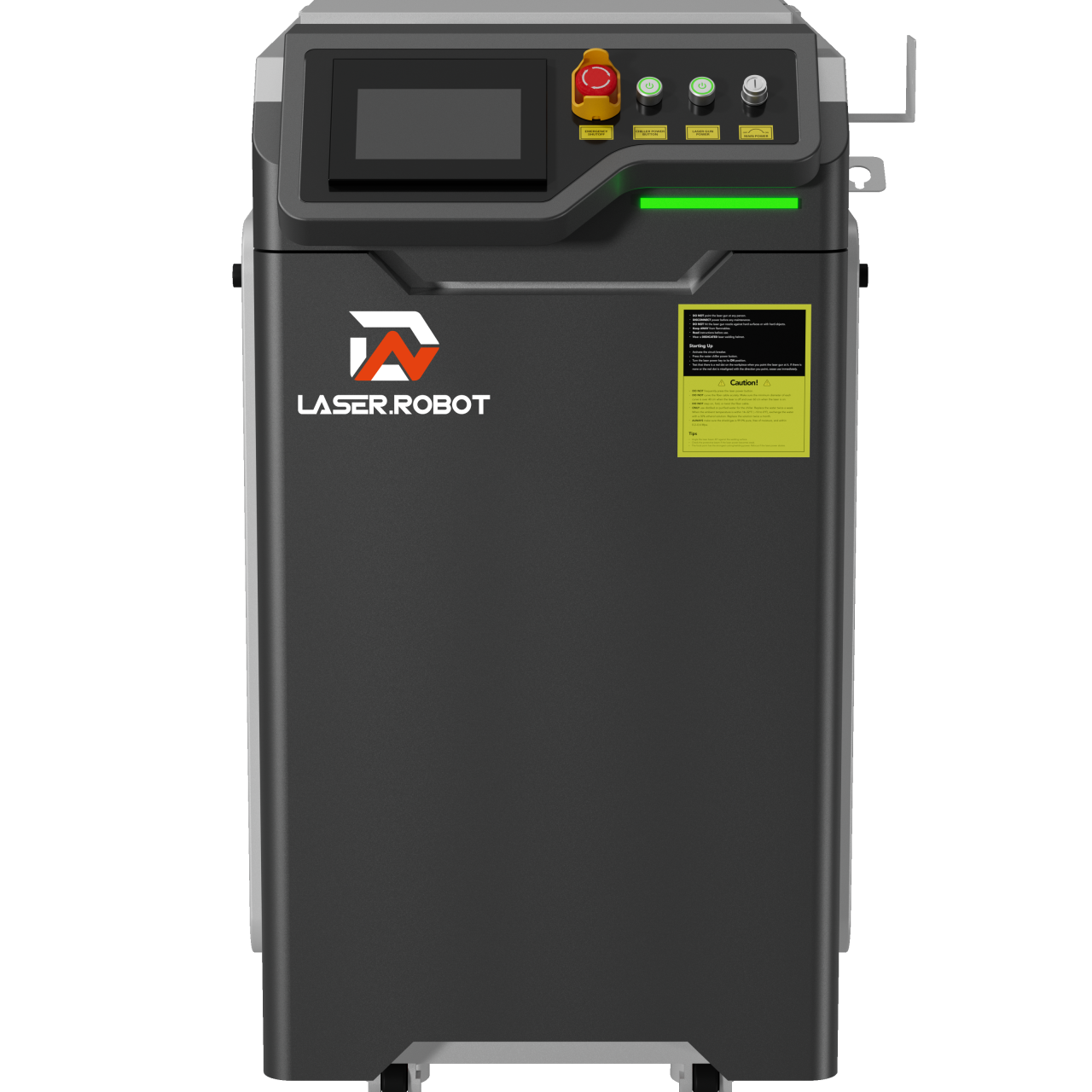

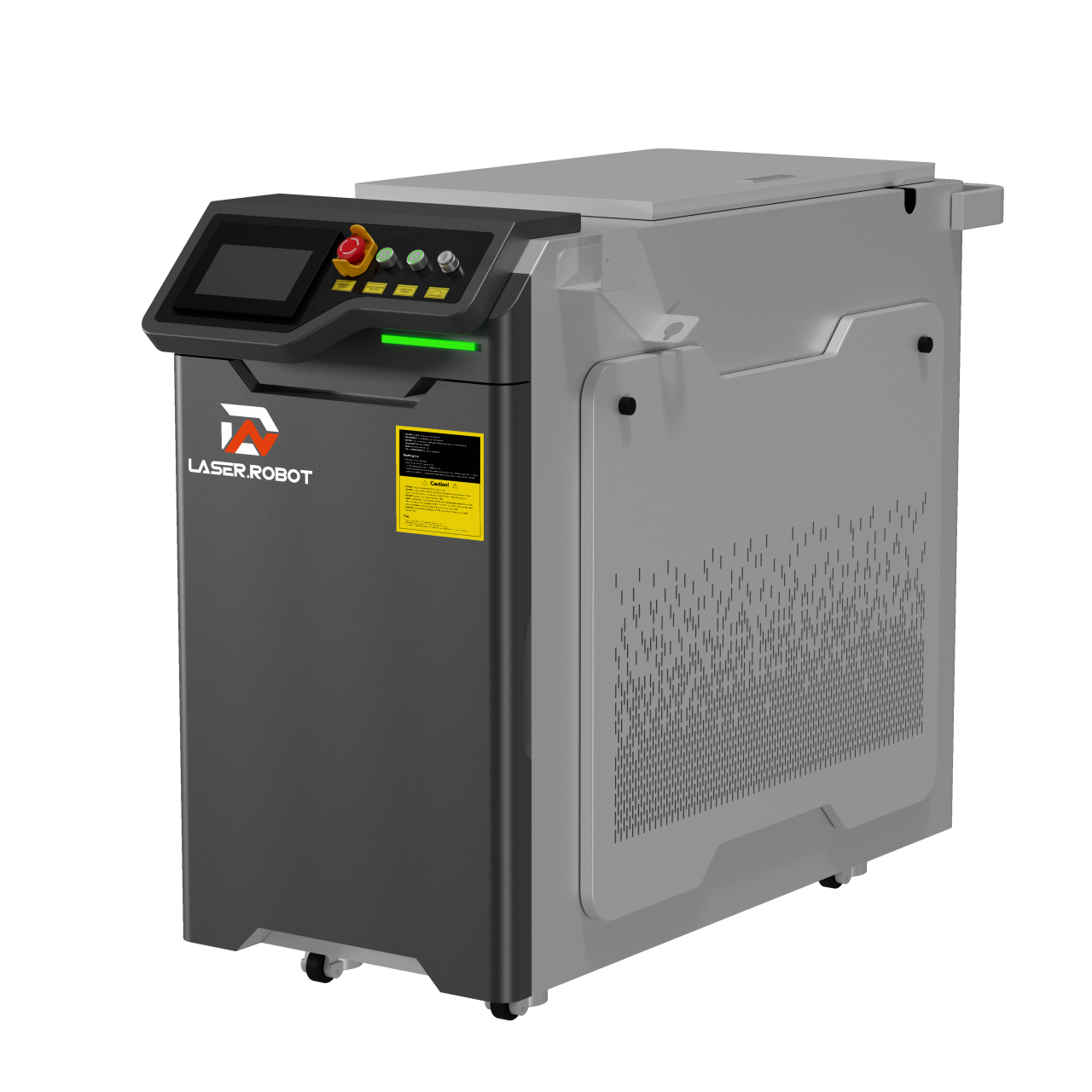

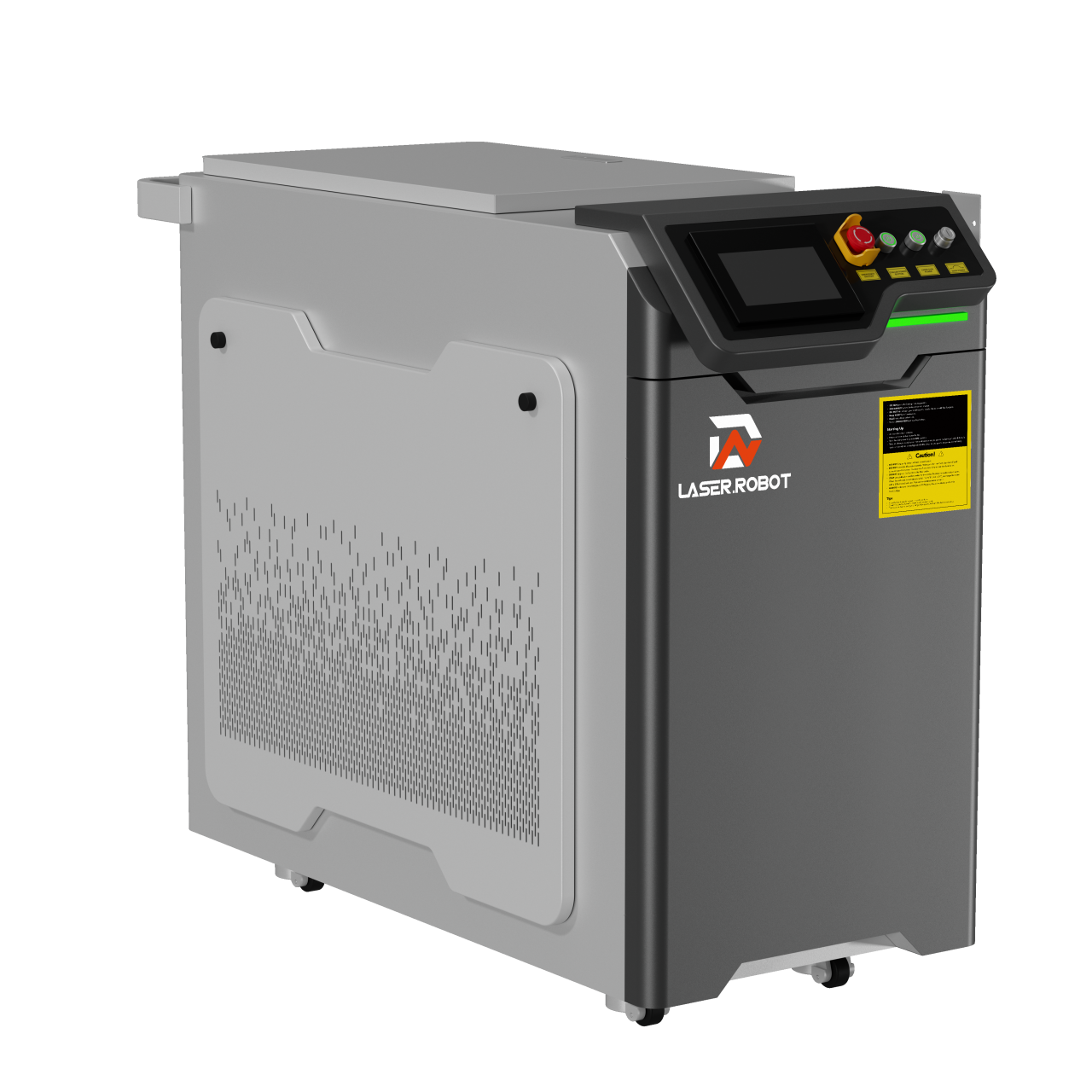

Handheld Laser Welder LW Series
This portable, user-friendly handheld laser welder with ergonomic design delivers precise low-heat welds for multi-metals; no professional certification required.
Model:
DN-LW-A Serise
Brand:
DN
Availability:
Inquiry
Product Details
Specifications
Portable Laser Welder
Portable laser hand-held welder: precise, easy-to-use, for diverse metals and small-batch production.
try{ $(function(){ window._block_namespaces_['block621'].init({'settingId':'jbKuNLlCARfO','nodeId':''}); }); }catch(e){try{console.log(e);}catch(e){}}
4 IN 1 MUTI Fuction
4-in-1 Handheld Laser Machine:
-Welding
-Cutting
-Cleaning
-Weld Seam Cleaning.
Smart Laser Welding Head
-Integrated
-Temperature Monitoring
-Lighter
-Smarter
-Stable.
try{ $(function(){ window._block_namespaces_['block621'].init({'settingId':'dLfuYqGjpAEZ','nodeId':''}); }); }catch(e){try{console.log(e);}catch(e){}}

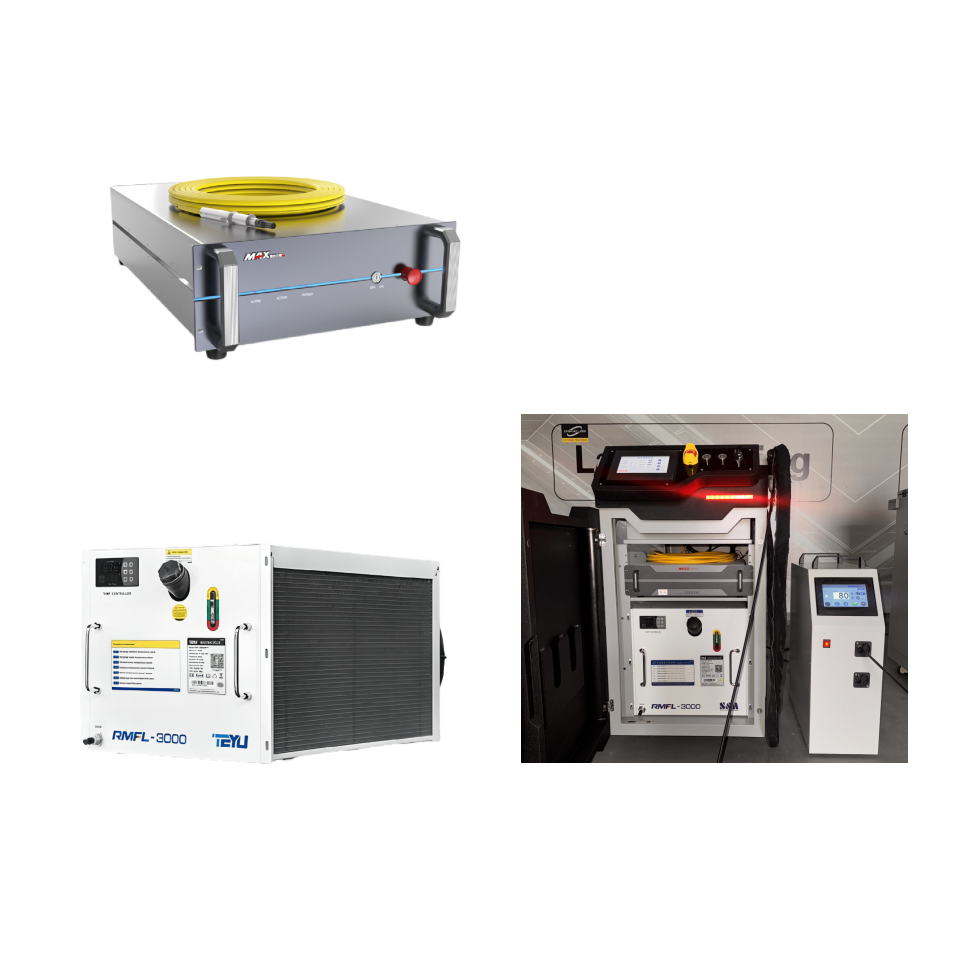

Laser Source & Chiller Compact Design
-MAX Laser Source
-Stable Cooling
-Compact Design efficient heat dissipation.
Smart Software
-Clean UI design for fast operate
-Rich in features, simple yet sophisticated.
try{ $(function(){ window._block_namespaces_['block621'].init({'settingId':'omKaiqljAUeZ','nodeId':''}); }); }catch(e){try{console.log(e);}catch(e){}}
Electric components
Schneider Electric components: trusted brand, CE-certified, safe and stable.
Full safety protection
-Safety fence, dual-circuit safety relays
-OD8+ safety window
-Laser emission indicator,
-Camera monitoring
-Door protection
-TRI-color status light
-Safeguarding operators and personnel
try{ $(function(){ window._block_namespaces_['block621'].init({'settingId':'kdpkiBQjfVsO','nodeId':''}); }); }catch(e){try{console.log(e);}catch(e){}}
Welding Sample
4
3
2
1
try{ $(function(){ window._block_namespaces_['blockCon9484'].init({'settingId':'mtAaYNhwcMUO','nodeId':'226a7b28-ce7a-42cf-9b1b-0026d70bac43'}); }); }catch(e){try{console.log(e);}catch(e){}}
Machine Show
Details
Electrical
Package
Fast Install
Details
try{ $(function(){ window._block_namespaces_['QX-02068494'].init({'settingId':'kEAuYqlZfLHO','nodeId':''}); }); }catch(e){try{console.log(e);}catch(e){}}
▶ Technical Parameter
Model
DN-LW-1500/2000/3000W
Power
1500/2000/3000W
Laser Source
MAX / Raycus CE
Chiller
S&A
Working Mode
Continuous Welding
Functions
Welding / Cleaning （1-110mm）/ Cutting / Welding Seam Cleaning
Welding Thickness
0.2-8mm(Stainless/Carbon)/0.2-6mm(Aluminum)
Fiber Length
10m STD / 15m OPT.
Overall Dimension
950*550*900mm
Product Details
Specifications
Related Products

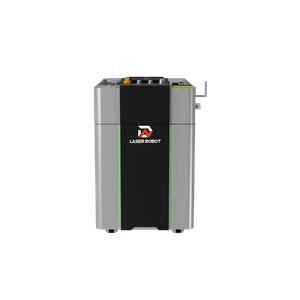

Handheld Laser Welder Compact
DN ROBOT
Established in 2019, DN focuses on robotic automated welding and laser applications.we serve more than 86 countries and regions.
